| Multiple Point |
|
| Rod Dia |
Thread Dia |
Material |
Part No |
| 14mm |
5/8" |
Copper |
MP14 |
| 14mm |
5/8" |
Aluminium |
MP14A |
| 14mm |
5/8" |
Tinned Copper |
MP14T |
| 17.2mm |
3/4" |
Copper |
MP17 |
|
 |
| |
|

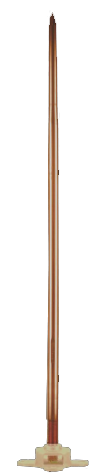

| Solid and Tinned Copper Air Rod - To IEC 62561-2 |
|
| Rod Length |
Rod Dia |
Thread Dia |
Material |
Part No |
| 500mm |
14mm |
5/8" |
Copper |
AR0514 |
| 1000mm |
14mm |
5/8" |
Copper |
AR1014 |
| 1500mm |
14mm |
5/8" |
Copper |
AR1514 |
| 2000mm |
14mm |
5/8" |
Copper |
AR2014 |
| 500mm |
14mm |
5/8" |
Tinned Copper |
AR0514T |
| 1000mm |
14mm |
5/8" |
Tinned Copper |
AR1014T |
| 1500mm |
14mm |
5/8" |
Tinned Copper |
AR1514T |
| 2000mm |
14mm |
3/4" |
Tinned Copper |
AR2014T |
| 500mm |
14mm |
5/8" |
Aluminium |
AR0514A |
| 1000mm |
14mm |
5/8" |
Aluminium |
AR1014A |
| 1500mm |
14mm |
5/8" |
Aluminium |
AR1514A |
| 2000mm |
14mm |
5/8" |
Aluminium |
AR2014A |
| 500mm |
12.5mm |
3/4" |
Copper |
AR0512 |
| 1000mm |
12.5mm |
3/4" |
Copper |
AR1012 |
| 500mm |
12.5mm |
3/4" |
Aluminium |
AR0512A |
| 1000mm |
12.5mm |
3/4" |
Aluminium |
AR1012A |
|
 |
| |
| Copperbond Air Rod |
| Rod Length |
Rod Dia |
Thread Dia |
Part No |
| 500mm |
14.2mm |
5/8" |
AR0514CB |
| 1000mm |
14.2mm |
5/8" |
AR1014CB |
| 1500mm |
14.2mm |
5/8" |
AR1514CB |
| 2000mm |
14.2mm |
5/8" |
AR2014CB |
| 500mm |
17.2mm |
3/4" |
AR0517CB |
| 1000mm |
17.2mm |
3/4" |
AR1017CB |
| 1500mm |
17.2mm |
3/4" |
AR1517CB |
| 2000mm |
17.2mm |
3/4" |
AR2017CB |
|
| |
|
| Air Rod Base - For Copper Tape Use To IEC 62561-1 |
|
| Thread Dia |
Material |
Part No |
| 3/4" |
Copper |
ARB12 |
| 5/8" |
Copper |
ARB14 |
| 5/8" |
Aluminium |
ARB14A |
| 5/8" |
Tinned Copper |
ARB14T |
| 3/4" |
Copper |
ARB17 |
|
 |
| |
|
| Air Rod Base - For Cable Use |
|
| Rod Dia |
Conductor Size |
Material |
Part No |
| 5/8" |
95mm |
Copper |
ARC14 |
| 5/8" |
95mm² |
Aluminium |
ARC14A |
|
|
| |
|
| Air Rod Base - Vertically Mounted (For 8mm Dia Conductor Use) |
|
| Rod Dia |
Thread Dia |
Material |
Part No |
| 8mm |
10mm |
Copper |
ARBV8 |
| 8mm |
10mm |
Aluminium |
ARBV8A |
| 8mm |
10mm |
Tinned Copper |
ARBV8T |
|
 |
| |
| Air Rod Base - Horizontally Mounted (For 8mm Dia Conductor Use) |
| Rod Dia |
Thread Dia |
Material |
Part No |
| 8mm |
10mm |
Copper |
ARBH8 |
| 8mm |
10mm |
Aluminium |
ARBH8A |
| 8mm |
10mm |
Tinned Copper |
ARBH8T |
|
| |
|
| Ridge Air Rod Base |
|
| Rod Dia |
Thread Dia |
Material |
Part No |
| 14mm |
5/8" |
Copper |
ARS14 |
| 14mm |
5/8" |
Aluminium |
ARS14A |
| 14mm |
5/8" |
Tinned Copper |
ARS14T |
|
 |
| |
|
| Air Rod Bracket |
|
| Rod Dia |
Thread Dia |
Material |
Part No |
| 14mm |
5/8" |
Copper |
ARK14 |
| 14mm |
5/8" |
Aluminium |
ARK14A |
| 14mm |
5/8" |
Tinned Copper |
ARK14T |
|
 |
| |
|
| Rod to Tape / Cable Coupling |
|
| Rod Dia |
Thread Dia |
Conductor Size |
Material |
Part No |
| 14mm |
5/8" |
25 x 3mm |
Copper |
RTCC14 |
| 14mm |
5/8" |
25 x 3mm |
Aluminium |
RTCC14A |
| 14mm |
5/8" |
25 x 3mm |
Tinned Copper |
RTCC14T |
| 14mm |
5/8" |
50mm² |
Copper |
RTCC50 |
| 14mm |
5/8" |
70mm² |
Copper |
RTCC70 |
| 14mm |
5/8" |
95mm² |
Copper |
RTCC95 |
|
 |
| |
|
| Strike Pad with Copper Stem |
|
| Rod Dia |
Length |
Material |
Part No |
| 10mm |
60mm |
Copper |
SPWS10 |
| 10mm |
60mm |
Aluminium |
SPWS10A |
| 10mm |
60mm |
Tinned Copper |
SPWS10T |
|
 |
| |
|
| Strike Pad Welded to Bar / Tape |
|
| Material |
Part No |
| Copper |
SP10W |
| Aluminium |
SP10WA |
| Tinned Copper |
SP10WT |
|
 |
| |
|
| Puddle Flange |
|
| Plate Size |
Material |
Part No |
| 150 x 150 x 3mm² |
Copper |
PF10 |
| 151 x 150 x 3mm² |
Aluminium |
PF10A |
| 152 x 150 x 3mm² |
Tinned Copper |
PF10T |
|
 |
| |
|

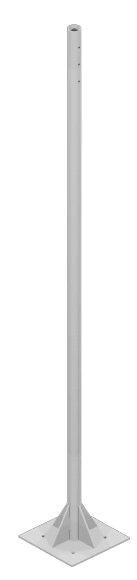

| Free Standing Mast for Air Terminal (S.S316) |
|
| Length |
Section |
Part No (S.S316) |
Part No (Glav.Steel) |
| 1m |
1m |
FSMS10 |
FSMG10 |
| 2m |
2m |
FSMS20 |
FSMG20 |
| 3m |
3m |
FSMS30 |
FSMG30 |
| 3.5m |
2m + 1.5m |
FSMS35 |
FSMG35 |
| 4m |
2m + 2m |
FSMS40 |
FSMG40 |
| 4.5m |
2.5m + 2m |
FSMS45 |
FSMG45 |
| 5m |
3m + 2m |
FSMS50 |
FSMG50 |
| 5.5m |
3m + 2.5m |
FSMS55 |
FSMG55 |
| 6m |
3m + 3m |
FSMS60 |
FSMG60 |
| 6.5m |
2.5m + 2m + 2m |
FSMS65 |
FSMG65 |
| 7m |
3m + 2m +2m |
FSMS70 |
FSMG70 |
| 7.5m |
3m + 2.5m + 2m |
FSMS75 |
FSMG75 |
| 8m |
3m + 3m + 2m |
FSMS80 |
FSMG80 |
| 8.5m |
3m + 3m + 2.5m |
FSMS85 |
FSMG85 |
| 9m |
3m + 3m + 3m |
FSMS90 |
FSMG90 |
| 9.5m |
3.5m + 3m +3m |
FSMS95 |
FSMG95 |
| 10m |
3.5 + 3.5m + 3m |
FSMS100 |
FSMG100 |
|
 |
| Suitable for Air Rod / Strike Pad / ESE Terminal with adapter |
|
| |
|
| Air Terminal Adapter |
|
| |
Conductor Size |
|
| Thread Dia |
Adapting Type |
Material |
Tape (mm) |
Cable (mm²) |
Part No |
| 5/8" |
Air Rod |
Copper |
20x3 - 31x6 |
50 - 70 |
MA16 |
| 5/8" |
Air Rod |
Stanless Steel 316 |
20x3 - 31x6 |
50 - 70 |
MA16SS |
| M20 |
ESE Terminal |
Copper |
20x3 - 31x6 |
50 - 70 |
MA20 |
| M20 |
ESE Terminal |
Stanless Steel 316 |
20x3 - 31x6 |
50 - 70 |
MA20SS |
|
 |
